Column Technology

Small Molecule Separations

Reversed Phase Columns: C18

Reversed phase HPLC is the most powerful and commonly used technique for the separation of pharmaceuticals. The mobile phases are usually a mixture of polar organic solvents and water. Separations can be isocratic or gradient and are based on analyte hydrophobicity – hydrophobic compounds are retained longer than polar compounds. A common issue with reversed phase separations is non-specific interactions between analytes and the column stationary phase. This undesired effect results from ionic interaction with un-reacted silanols or impurities in the silica gel. This non-specific interaction can cause peak tailing or adsorption as shown in Figures 2a and 2b. CTI's AccuSil columns begin with exceptionally pure, highly characterized silica and use a proprietary bonding and end-capping techniques to eliminate free silanols. This results in columns with excellent peak shape and separation efficiency for all compounds including basic, neutral and acidic analytes.

AccuSil Silica Columns

Superior Column Performance – Separation of Basic Compounds

Many pharmaceuticals are basic, organic, nitrogen-containing compounds. During reversed phase chromatography, these nitrogen groups will react with non-reacted silanol groups on silica-based chromatography supports and can lead to chromatographic artifacts such as shifting retention times or the complete retention of a compound of interest. CTI’s reversed phase supports begin with the purest possible silica and are manufactured with a proprietary process that assures complete end-capping. Furthermore, each column is tested to make sure that no non-reacted silanols remains. The result is excellent chromatography as seen in the left panel below.

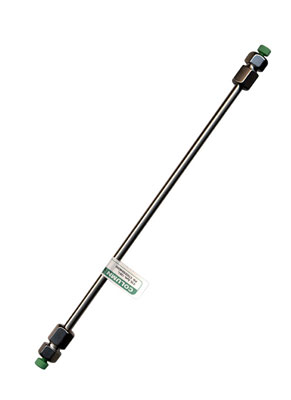

AccuSil C18
Particle Size (μm) Column Dimension (mm) Pore Size (A) Part Number Price
5 4.6 x 250 120 CTIODS546250 $750.00
5 4.6 x 150 120 CTIODS546150 $700.00
5 4.6 x 50 120 CTIODS546050 $650.00
5 2.1 x 250 120 CTIODS521250 $725.00
5 2.1 x 150 120 CTIODS521150 $700.00
5 2.1 x 50 120 CTIODS521100 $625.00
5 1.0 x 250 120 CTIODS521050 $700.00
5 1.0 x 150 120 CTIODS510100 $650.00
5 1.0 x 50 120 CTIODS510050 $600.00
3 2.1 x 100 120 CTIODS321100 $800.00
3 2.1 x 50 120 CTIODS321050 $750.00
3 1.0 x 100 120 CTIODS310100 $775.00
3 1.0 x 50 120 CTIODS310050 $725.00

Reversed Phase Columns: C18
